Flex to Board Connectors Specifications

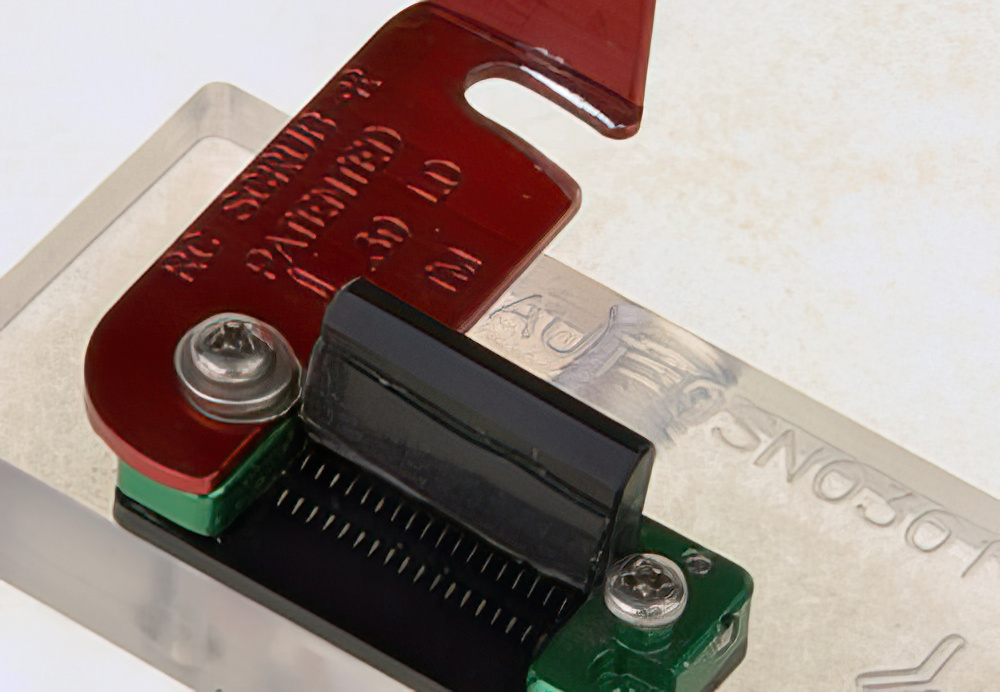

Flex to Board Connector

Flex to Board Connector

Flex System Close-Up

Flex System Close-Up

This revolutionary new ‘wiping’ action RC contact technology is a Patented Ardent Solution for ultra-small flex-to-board connectors and sockets. Ideal for both test and production use, SC™ connectors are available for custom applications with short lead times. Exceptional Signal Integrity Long Life Lower Component Costs Lower Overall Costs

View Drawing Request a Quote Brochure
Mechanical
Mated Z Height .94mm
Minimum Pitch .4mm
Contact Force 10-17 grams
Cycles 100K+
Electrical
Self Inductance .34 nH
Insertion Loss <-1dB to 24 GHz
DC Resistance 60 mOhm
Temp -50 – 150C
Materials
Housing Torlon, Vespel, Ultem
Contact Set Palladuim Alloy, BeCu
